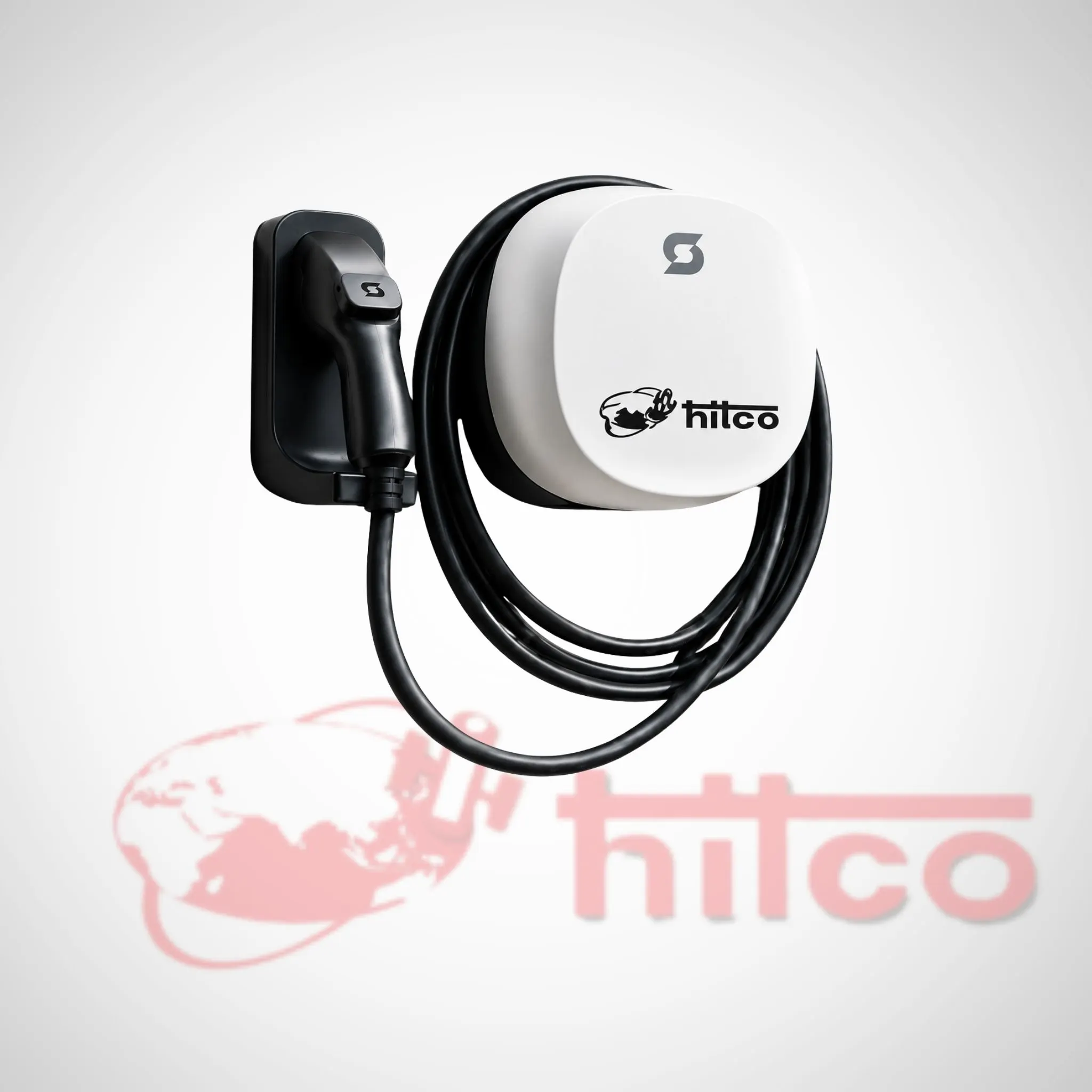

Product Details of Spin Air 7.4 kW EV Charger
-
Charging Power: 7.4 kW (Single-phase)
-
Max. AC Output Current: 32 A
-
Connection Point / Plug Type: IEC 62196-2 Type-2 (Tethered 5 meters)
-
Mode of Charging: Mode-3
-
Operating Temperature Range: -25°C to 55°C
-
Protection Ratings: IP66 (Ingress Protection) | IK10 (Impact Resistance)
-
Construction & Material: Polycarbonate + ABS (UL94-V0)
-
Integrated Safety / Residual Current: 6mA DC + 30mA AC leakage detection
-
Certifications & Standards: Safety: IEC 61851-1 | Other: CE, IEC 61851-21-2, IEC 62196-1, IEC 62196-2, IEC 61000, ARAI (IS 17017 series)
Features
Universal Fleet Compatibility:
Equipped with a standard Type-2 (IEC 62196-2) tethered 5-meter cable designed to power all modern electric vehicles efficiently.
High-Efficiency Rapid Charging:
Delivers a robust 32 A output at 7.4 kW (1-phase) for powerful home or light commercial charging.
Smart App & Integration Control:
Features intuitive remote scheduling, real-time analytics, and voice control capabilities via Bluetooth, Wi-Fi, 4G, Amazon Alexa, and Google Home.
Heavy-Duty Rugged Construction:
Built using fire-retardant Polycarbonate + ABS (UL94-V0) with an extreme IK10 structural impact resistance rating.
All-Weather Operational Resilience:
Boasts an outstanding IP66 weatherproof rating, allowing it to remain fully operational in extreme outdoor temperatures ranging from -25°C to 55°C.
Advanced Multi-Layer Safety Protection:
Outfitted with integrated 6mA DC + 30mA AC leakage detection, alongside over-current, under/over-voltage, and over-temperature safety safeguards.
Certified Global Benchmarks:
Complies stringently with IEC 61851-1 safety standards, CE, and ARAI certifications.
Price:
Available upon request (Contact HITCO for a personalized installation assessment and price quote).
FAQ's
What type of electric vehicles can this charger power?
It is suitable for all modern electric vehicles equipped with a standard Type-2 (IEC 62196-2) connection interface.
What is the weight and cable length of the charger?
The charger weighs approximately 7.5 kg (including the cable) and comes with a tethered 5-meter charging cable.
Can this charger be installed outdoors?
Yes, it features an outstanding IP66 weatherproof rating and an IK10 impact resistance rating, making it highly durable for both indoor and outdoor setups.
What is the maximum charging speed and output power?
The charger delivers a maximum charging power of 7.4 kW on a single-phase supply with a maximum output current of 32 A.
What is the temperature range this charger can operate in?
The charger can operate efficiently in extreme environments with temperatures ranging from -25°C to 55°C.
Does it have smart app control?
Yes, you can control, schedule, and track real-time analytics using the companion smart app via Bluetooth, Wi-Fi, or 4G connectivity.
What certifications does this charger have?
The charger meets rigorous safety and quality benchmarks, complying with IEC 61851-1, CE, IEC 62196, and ARAI standards.
